OVERDRIVE

OIL PRESSURE GAUGES

FOR USE WITH

LAYCOCK De NORMANVILLE

A/D TYPE | J TYPE | LH TYPE OVERDRIVES

Specifications:

Hydraulic Oil Pressure Test Gauge Set – A & D Type, J Type, or LH Type Laycock de Normanville Overdrive, functionally equal to / better than Churchill L.188, and Churchill adapter L.188-2, [BL tool 18G251 and 18G251E (LH)] which have long been out of production and are very rare.

The oil pressure gauge is the key tool for Laycock de Normanville Overdrive problem diagnosis and repair.

The oil pressure gauge is the key tool

for Laycock de Normanville Overdrive

problem diagnosis and repair.

The Gauge Set Consists of:
  • Custom machined steel fitting to replace the operating valve plug. (A & D Type)
  • Custom machined steel fitting to connect to the test port near the solenoid (J Type)
  • Custom machined steel fitting to replace the relief valve plug (LH Type)

  • 0 > 600 PSI – 2.5 inch diameter pressure Gauge – liquid (glycerin) filled, which helps absorb vibration and pressure spikes, increasing the service life of the gauge. The dampening action of the liquid also reduces pointer flutter and lubricates the internal parts of the gauge.

    The allowable operating/ambient temperature range for the glycerin is -4F to 140F (-20C to 60C).

    Gauge: 304 stainless steel case, polycarbonate window, black finished galvalume pointer, galvalume dial (white background with blue and black markings), brass movement, phosphor bronze bourdon tube.

  • Associated brass connecting fittings. (A & D Type)
  • High pressure 3000 psi hose and brass connecting fittings (J & LH Type)

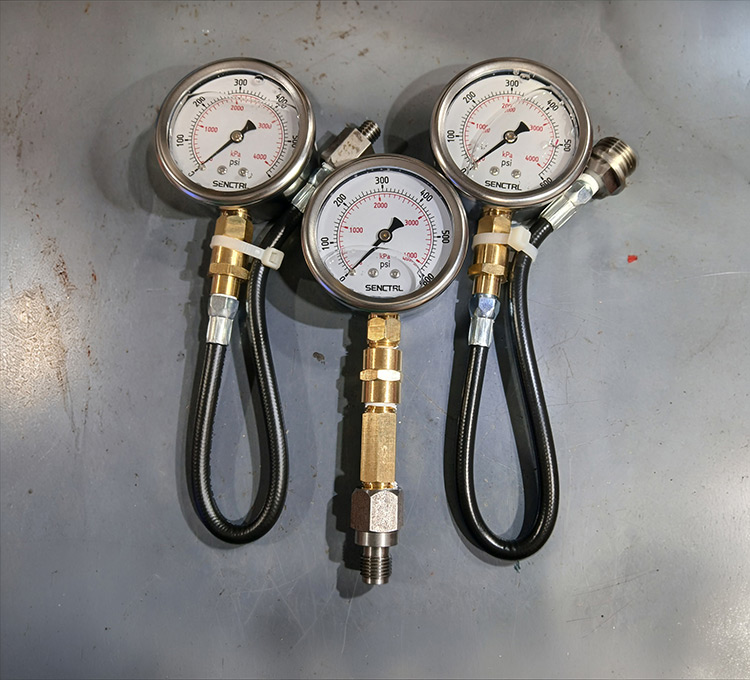

ad j lh overdrive gauges 750x680

Choose the

correct gauge for

your application.

The Gauge Set Consists of:

  • Custom machined steel fitting to replace the operating valve plug. (A & D Type)
  • Custom machined steel fitting to connect to the test port near the solenoid (J Type)
  • Custom machined steel fitting to replace the relief valve plug (LH Type)

  • 0 > 600 PSI – 2.5 inch diameter pressure Gauge – liquid (glycerin) filled, which helps absorb vibration and pressure spikes, increasing the service life of the gauge. The dampening action of the liquid also reduces pointer flutter and lubricates the internal parts of the gauge.

    The allowable operating/ambient temperature range for the glycerin is -4F to 140F (-20C to 60C).

    Gauge: 304 stainless steel case, polycarbonate window, black finished galvalume pointer, galvalume dial (white background with blue and black markings), brass movement, phosphor bronze bourdon tube.

  • Associated brass connecting fittings. (A & D Type)
  • High pressure 3000 psi hose and brass connecting fittings (J & LH Type)

Select your gauge set, add it to your cart,

shipping will be calculated at checkout.

Select your gauge set, add it to your cart, shipping will be calculated at checkout.

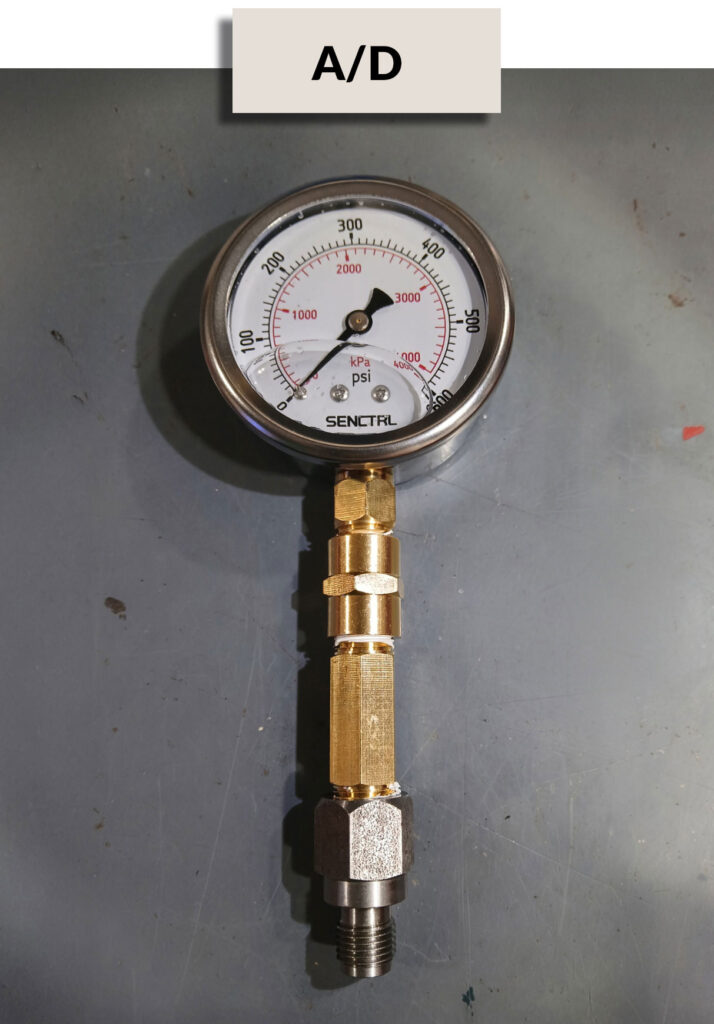

A/D type overdrive oil pressure gauge set

A/D Type
Oil Pressure
Gauge Set

The A/D Type gauge set allows the overdrive oil pump to operate while indicating oil pressure since the custom machined steel fitting duplicates the standard operating valve plug, while providing oil pressure connection to the gauge.

PART #1001
A/D Type Oil Pressure
Gauge Set complete

$59.50Add to cart

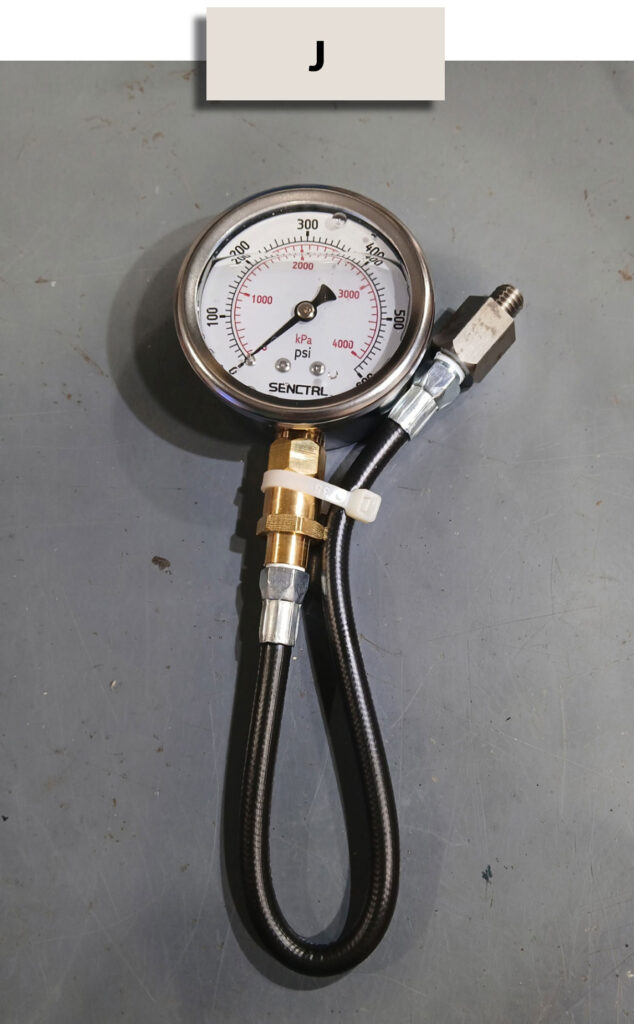

J type overdrive oil pressure gauge set

J Type
Oil Pressure
Gauge Set

The J Type gauge set
connects to the overdrive case
at the test port.

PART #1002
J Type Oil Pressure
Gauge Set complete

$59.50Add to cart

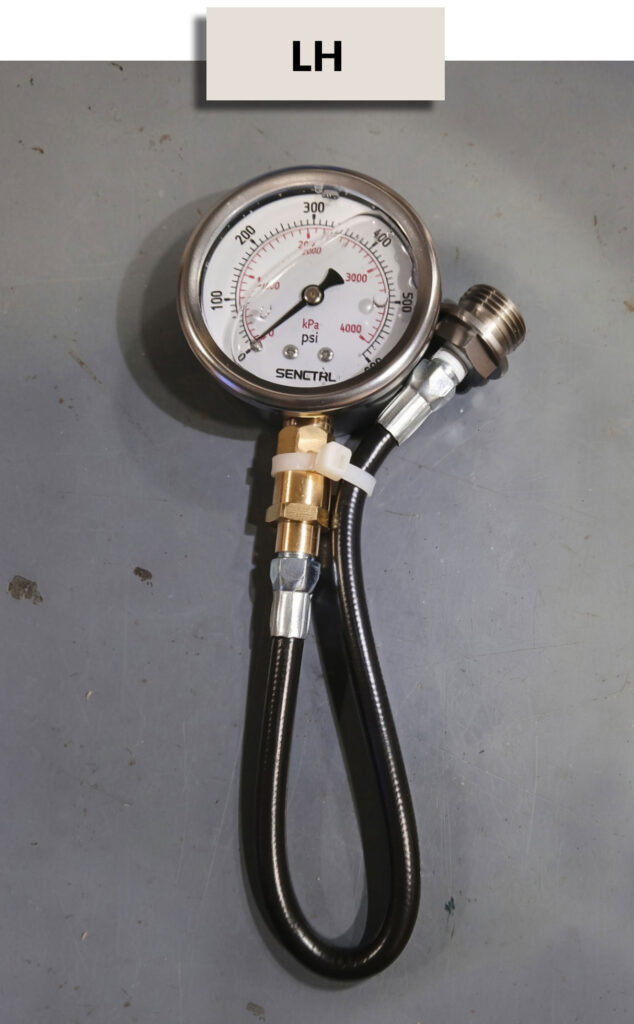

LH type overdrive oil pressure gauge set

LH Type
Oil Pressure
Gauge Set

The LH Type gauge set connects to the overdrive case by replacing the relief valve plug.

PART #1003
LH Type Oil Pressure
Gauge Set complete

$59.50Add to cart

Any Two Types (Specify)

Combination kits include the associated brass fittings, connecting fittings, and 3000 psi hose. Only one 600 psi pressure gauge is included.

PART #1004
Any Two Types
Combination Kit
(only one 600 psi gauge)
$96.50

This button will take you to the  Combination Kits Product Page.

Select Options
