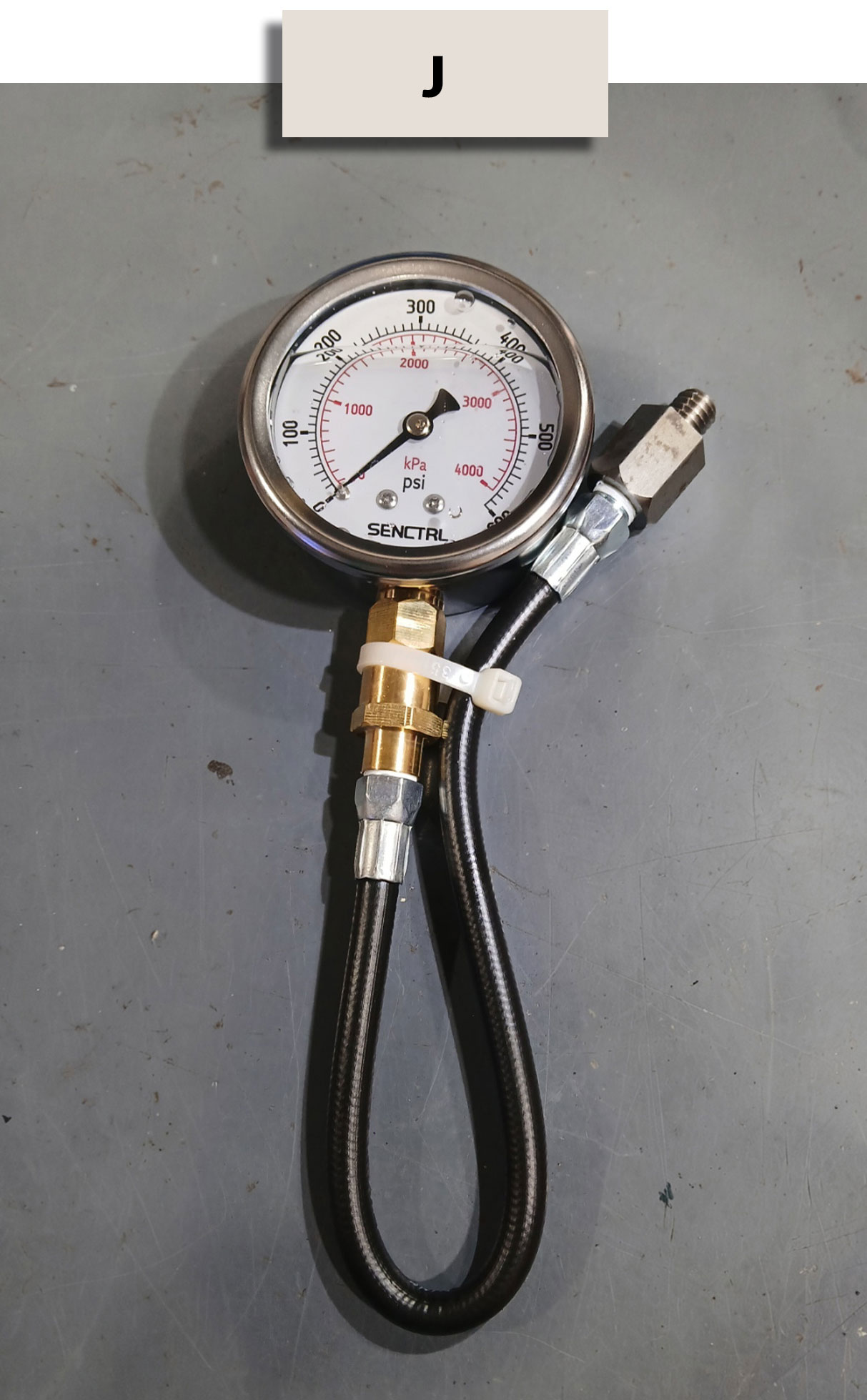

The Gauge Set Consists of:
- Custom machined steel fitting to connect to the test port near the solenoid.
- 0 > 600 PSI – 2.5 inch diameter pressure Gauge – liquid (glycerin) filled, which helps absorb vibration and pressure spikes, increasing the service life of the gauge. The dampening action of the liquid also reduces pointer flutter and lubricates the internal parts of the gauge.
- The allowable operating/ambient temperature range for the glycerin is -4F to 140F (-20C to 60C).
- Gauge: 304 stainless steel case, polycarbonate window, black finished galvalume pointer, galvalume dial (white background with blue and black markings), brass movement, phosphor bronze bourdon tube.
- High pressure 3000 psi hose and brass connecting fittings.
